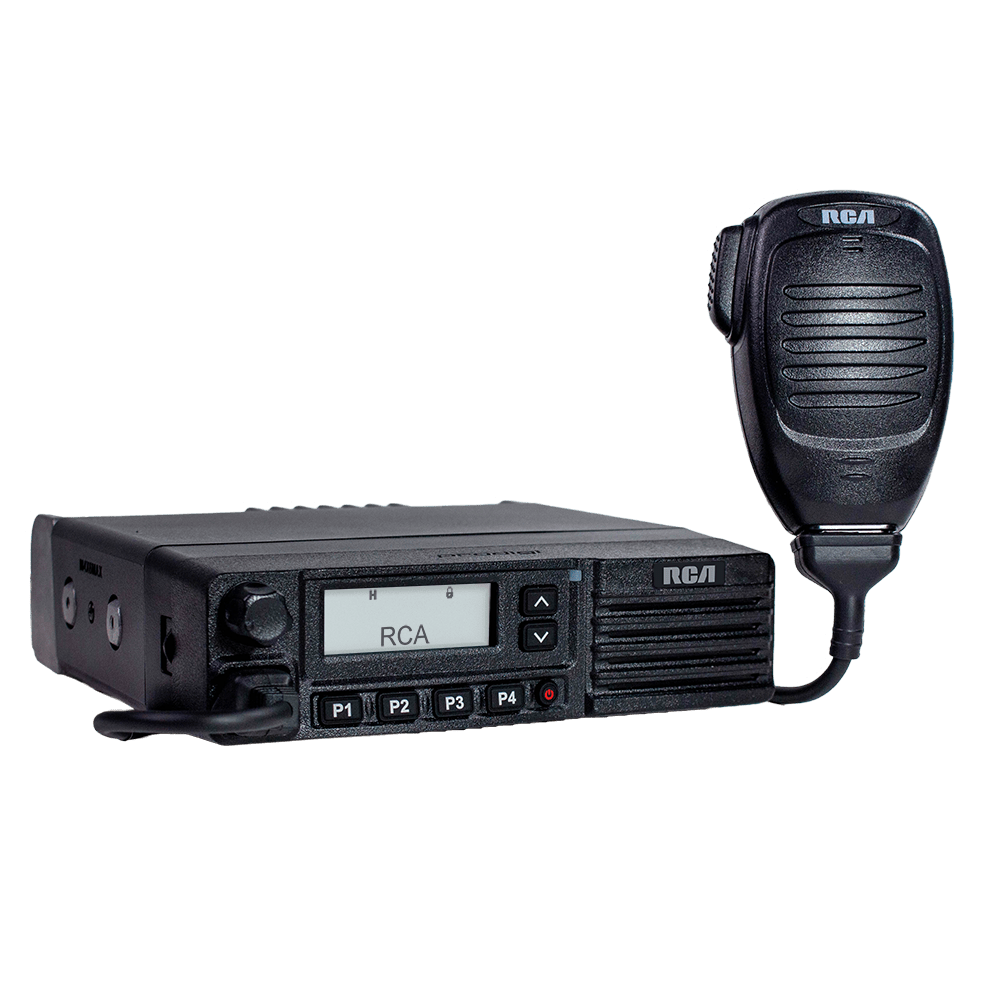

RDR5200 Mobile TWO-WAY RADIO “COMPATIBLE WITH MOTOROLA”

SKU: RDR5200 Category:

$429.00

Cost-Effective DMR Digital Mobile Two-Way Radio

Compact, versatile and cost-effective, the RDR5200 Series of mobile radios is completely compatible with any other DMR Digital radio on the market. It operates in both digital and analog modes, delivering clear and loud communication. When safety and reliability is critical, the RDR5200 Series of radios is the best choice for your communication needs.

When safety and reliability is critical, the RDR5200 Series of radios is the best choice for your communication needs. Compact, versatile and cost-effective, the RDR5200 Series of mobile radios is completely compatible with any other DMR Digital radio on the market. It operates in both digital and analog modes, delivering clear and loud communication.

With it’s versatility the RDR5200 can be used in a wide range of applications. Industries such as K12 Education, Colleges and Universities, Manufacturing, Security, Hotels more.

Product Documents



Description

Exceptional Audio Quality, Improved Coverage
The RDR5200 radios completely eliminate background noise and static from voice transmissions, delivering a crystal clear message compared to analog radios.

Analog + Digital Operation
Capable to operate in both analog and digital modes the RDR5200 radios give you the option to upgrade to digital at your own pace.

Power is Performance
The RDR5200 radios are designed to output 40 or 50 Watts of Power respectively in the UHF or VHF providing optimal communication range.

Emergency and Security
In critical situations, the radio user can initiate an emergency alarm which overrides all activity on the channel.

Private and Group Call
Allows users to talk privately with specific individuals or groups without broadcasting to everyone on the channel.

Signaling
2-Tone, 5-Tone, DTMF Encode/Decode and MDC1200 Encode: PTT ID (identifies outbound calls), Individual/Group Call (receive/place calls from specific individuals or groups), Call Alert (tone indicates new inbound call), and Alarm (sounds alarm or notifies system administrator of emergency).

Radio Stun/Kill/Revive
Allows the radio administrator to disable radio if it is lost or stolen.

Front Panel Speaker
Powerful 4 Watt Internal Speaker .



Four Programmable Front Panel Buttons
Places your favourite features at your fingertips.

Voice Annunciation
Announces channel number when channel is changed.

Industry Leading Warranty
Backed by a Three (3) Year Warranty.

Additional Features

Repeater Operation Capable
Voice Annunciation
Voice Scrambler
Battery Strength Indicator
Monitor
Auto Battery Save Mode
Low Battery Alert
Busy Channel Lockout (BCL)
Time-out-timer (TOT)
RSSI Indicator
CTCSS/DCS Encode/Decode
DTMF Encode
DTMF Paging
PTT ID



Digital Specific Additional Features

Repeater Operation Capable
All Call, Group Call, Private Call
Privacy Voice Encryption
Radio Check, Radio Kill/Active
Remote Radio Monitor
Emergency Alert
Lone Worker Alert
Text Messaging
Mixed Mode (Analog/Digital) Scanning
One Touch Access
DTMF Encode
PTT ID Encode/Decode

General Specifications
Radio Model RDR5200
Number Of Channels 1000
Frequency Bands 136 - 174 MHz (VHF “V”); 400 - 470 MHz (UHF “U”); 450 - 520 MHz (UHF “U2”)
Operating Temperature -22°F (-30°C) ~ 140°F (60°C)
Weight 2.9 lbs / 1,315 g
IP Rating IP65
Digital Protocol ETSI TS 102 361-1,-2,-3
Power Output 5W, 25W, 45W (UHF) / 50W (VHF)
Dimensions 1.8” X 6.3” X 6.9” 46 x 160 x 175mm
Power Supply 13.6V DC +/-20%
Zones 250
Vocoder AMBE+2
Receiver Specifications
Frequency Stability <1.0 ppm
Intermodulation 70 dB
Adjacent Channel Selectivity TIA603C: 65dB, ETSI: 60dB
Rated Audio Output Power 7W @ 8 Ohms
Analog Sensitivity 0.35μV/-116dBm (20 dB SINAD) 0.22μV/-120dBm (12 dB SINAD)
Digital Sensitivity 0.3μV/-11.4dBm (BER 5%) 0.7μV/-110dBm (BER 1%)
Co-Channel Rejection [email protected]
Spurious Response Rejection TIA603C: 75dB; ETSI: 70dB
Block 84dB
Rated Audio Distortion ≤3%
Conducted Spurious Emission -57 dBm <1GHz, -47 dBm>1GHz RCACommunicationsSystems.com © 2015 RCA Communications Systems. All rights reserved. Specifcations subject to change without notice. ETS300 086
Selectivity 60 dB (12.5kHz); 70 dB (20/25 kHz)
Transmitter Specifications
FM Hum And Noise -40dB (12.5KHz)
Adjacent Channel Power -60dB
4FSK Digital Modulation 12.5KHz Data: 7K60FXD 12.5KHz Data/Voice: 7K60FXE
Audio Response +1 dB ~ -3 dB @ 300 to 3,000 Hz
Intermodulation 70 dB
Rated Audio Distortion ≤3%
Conducted/Radiated Emission -36dBm@<1GHz,-30dBm@>1GHz
FM Modulation Mode 12.5KHz: 11K0F3E 25KHz: 16K0F3E
4FSK Modulation Accuracy 5%@77°F,10% @ extreme temperature
