BR200 Handheld Radio Package

Rugged, Powerful, Affordable Commercial Portable

RCA’s BR200 is a rugged, affordable portable two-way radio that will help you stay in touch without breaking your budget. This small but powerful radio has 5 watts VHF of power providing optimum coverage range. The BR200 has a wide variety of features that will enable you to communicate effectively and efficiently with your staff.

Questions about this item?

Call us and we will be happy to answer any questions and make sure you get the absolute best solution for your business!
Description
High Output Power providing Superior Coverage

Compact but powerful BR200 has 5 watts VHF of output power ensuring optimum coverage range within your facility.

Durable and Reliable Design

Meets IP65 dust proof and water resistant standards and Military Specs (MIL-STD-810C/D/E/F) for durability.

16 Channels

Plenty of choices for specific departments or groups.

High Capacity Battery Options

High capacity, lightweight Lithium Ion battery with 1700mAh, 12.58Wh capacity which will last you 14 hours. Upgraded 2000mAh, 14.8Wh battery is available.

Advanced Signalling Features

2-Tone, 5-Tone, DTMF Encode/Decode and MDC1200 Encode: PTT ID (identifies outbound calls), Individual/Group Call (receive/place calls from specific individuals or groups), Call Alert (tone indicates new inbound call), and Alarm (sounds alarm or notifies system administrator of emergency).

Safety and Emergency Functions

Lone Worker and Emergency Alarm features are available standard. Stun/Kill/Revive allows the radio administrator to disable radio if it is lost or stolen. Optional Man Down feature is also available.

Professional Audio Quality

XSound ™ Enhanced Audio Clarity produces clear, crisp audio that’s 50% louder than Motorola’s CP200.

Guaranteed compatibility with Motorola CP200 and more!

The BR200 portable two-way radios by RCA are guaranteed compatibility with Motorola CP200 and all other major radio models, from Motorola, Kenwood, Icom, Vertex and more!

RCA BR200 is a rugged, affordable radio that will help you stay in touch without breaking your budget. This small but powerful radio has 5 watts VHF of power so you won’t miss a call. The BR200 has a wide variety of features that will enable you to communicate effectively and efficiently. With its durable design and high output power, it can be used in a wide range of applications. Industries such as, education, warehousing and logistics, security, hotels and churches can all benefit from its reliability and advanced set of features.

Industry Leading Warranty

The BR200 radios are backed by a hassle-free, Three (3) Year Warranty.

Motorola Compatible Audio Accessory Connector

Two-prong right angle audio accessory connector, same connector used in the Motorola On-Site and Analog Business portable radios.

Radio Overview
  1. On/Off and Audio Volume Knob - Clear, crisp audio that’s 50% louder than Motorola’s HT750.
  2. Channel Knob - Plenty of choices for specific assignments.
  3. Programmable/Emergency Top Button - Activates emergency signal or can be programmed to make it easy to use your favourite feature.
  4. Large 1" PTT Button - Easy to use even if you have your working gloves.
  5. 2 Programmable Side Buttons - Place your favourite features at your fingertips.
  6. Powerful 1 Watt Speaker - Providing loud and crisp, quality audio.
  7. Two Prong Right Angle Connector - Compatible with CP200 and other Motorola 2-prong audio accessories.

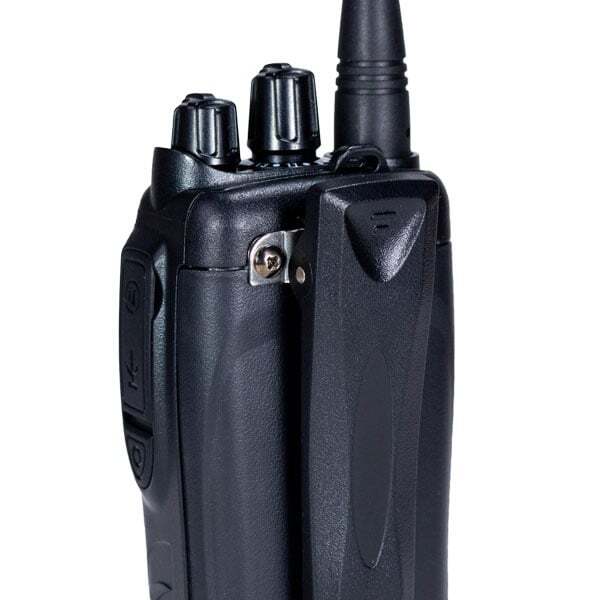

  8. Screw-on Belt Clip - Heavy duty, spring loaded carry option comes standard with the radio.
  9. Low Maintenance Lithium Ion Battery - 1700mAh, 12.58Wh standard capacity and 2000mAh, 14.8Wh upgrade option.

Specifications
GENERAL SPECIFICATIONS
Radio Model BR200
Number of Channels 16
Frequency Bands 136-174 MHz (VHF)
Operating Temperature -22°F (-30°C) ~ 140°F (60°C)
Weight 9.5 ounces (270g) with 1700 mAh battery
Size: HxWxD (inches) 4.5” x 2.1” x 1.3” / 113 x 54 x 33.5mm
IP Rating IP65 (Water Resistant/Dust Proof)
Durability Standards MIL-STD-810 F
Standard Battery Li-ion 1700 mAh. Optional 2000 mAh
Optional Battery N/A
Battery Life Approx.12 hours, high transmit power 1700 mAh battery, 90:5:5 duty cycle
RECEIVER SPECIFICATIONS
Frequency Stability <2.5ppm
Intermodulation 70dB
Adjacent Channel Selectivity 60 dB (12.5kHz); 70 dB (20/25 kHz)
Audio Frequency Response +1 dB to -3 dB @ 300 to 3000 Hz
Sensitivity (12 dB SINAD) EIA - 0.28 μV @12.5 KHz
(20 dB SINAD) ETS - 0.50 μV
Rated Audio Output Power 1,000 mW @ 3% distortion
TRANSMITTER SPECIFICATIONS
Transmit Power Low - 1W / Medium - 2W / High - 5W (VHF)
Hum and Noise 45 dB / -40dB (25 kHz)
Audio Distortion <3%
Audio Frequency Response +1 dB to -3 dB @ 300 to 3000 Hz
Compatible with
  • Any UHF Analog Radio
  • Any VHF Analog Radio
  • Icom F3
  • Icom F4
  • Icom F11
  • Icom F14
  • Icom F15
  • Icom F21
  • Icom F21GM
  • Icom F24
  • Icom F25
  • Icom F21GM
  • Icom F3001
  • Icom F3002
  • Icom F3003
  • Icom F3011
  • Icom F4001
  • Icom F4002
  • Icom F4003
  • Icom F4011
  • Kenwood TK-190K
  • Kenwood TK-190K2
  • Kenwood TK-2302VK
  • Kenwood TK-3302UK
  • Kenwood TK-3302UK2
  • Kenwood TK-2402VK
  • Kenwood TK-3402VK
  • Kenwood TK-260K
  • Kenwood TK-260GK
  • Motorola BPR40
  • Motorola CT150
  • Motorola CT250
  • Motorola CP200
  • Motorola EX500
  • Motorola EX560-XLS
  • Motorola GP140
  • Motorola GP240
  • Motorola GP330
  • Motorola GP340
  • Motorola GP344
  • Motorola GP540
  • Motorola GP640
  • Motorola GP644
  • Motorola RDU4100
  • Motorola RDV5100
  • Pro Series CP199
  • Pro Series CP220
  • Pro Series CP240
  • Pro Series CP260
  • Pro Series HT700
  • Pro Series HT850
  • RCA BR200
  • RCA BR250
  • Vertex VX-210AU
  • Vertex VX-351-AD0B-5
  • Vertex VX-351-AG8B-5
  • Vertex VX-351-AG7B-5
  • Vertex VX-351-G6-5
  • Vertex VX-351-G7-5
  • Vertex VX-414-2-5
  • Vertex VX-417-4-5
  • Vertex VX-451-D0
  • Vertex VX-451-G6
  • Vertex VX-451-G7
  • Vertex VX-400V
  • Vertex VX-400U
  • Vertex VX-600V
  • Vertex VX-600U

*Disclaimer: Most radios are compatible and will work with each other regardless of brand and model, given that they are same technology (Analog, DMR, NXDN or P25 Digital) and the basic programming options, such as frequencies and codes are matched. The compatible models listed above are based on the radio's physical characteristics, quality, functionality, price categories and the ability of the radios to work with one another on a basic level. For further information, please contact us at 800-895-5122.
